THF系列全自動氬弧(等離子)環縫焊接機
THF Series Automatic TIG (Plasma) Circular Seam Welding Machine
整機特性:
1. 根據焊接工件的形狀和尺寸可設計成臥式和立式結構;
2. 工件旋轉由變頻電機(或伺服)+減速機+三爪夾緊的驅動方式,運動平穩,無級調速;
3. 工件壓緊、松開以及焊槍進退均采用氣缸驅動,并且焊槍具有精密微動調節機構,以便焊槍與焊縫形成最佳方位;
4. 控制系統采用PLC或繼電器集成化控制,操作界面簡單友好,修改維護方便;
5. 可任意匹配各種類型弧焊電源(氬弧焊/CO2焊/埋弧焊/等離子弧焊)。
6. 主要用于不銹鋼、鐵、鋁、黃銅等各種金屬的圓形,橢圓形及異形的高質量環縫焊接
Main Features and Applications

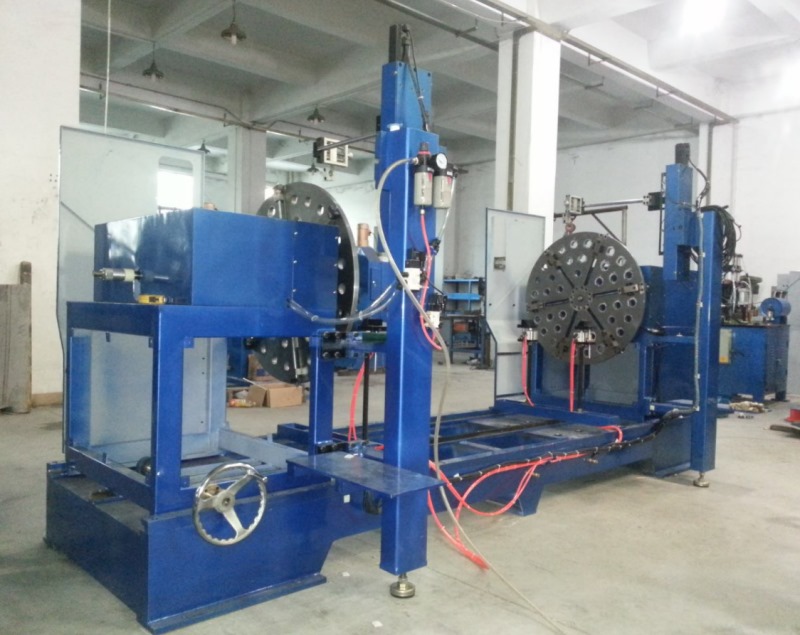

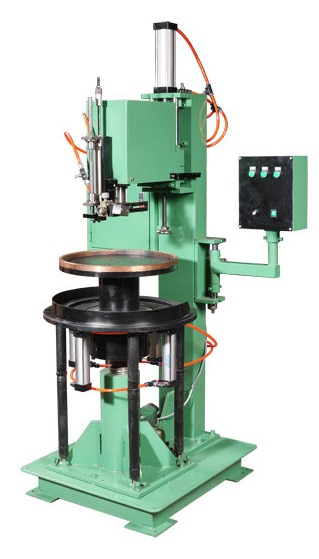

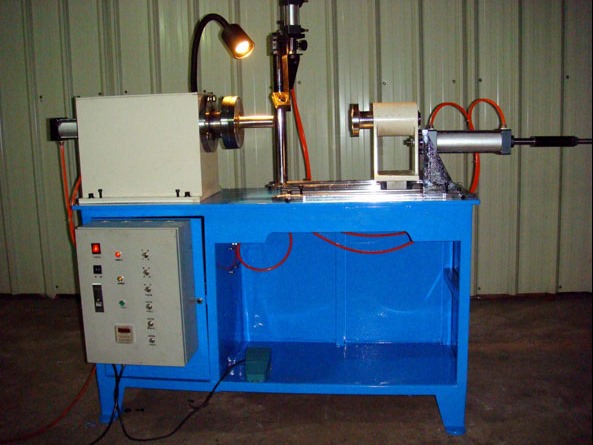

1.According to the shape and size of each welding part, the machine can be designed as Horizontal Type and Vertical Type ;
2.clamp, travel steadily with step less adjustable speed;
3. Clamp axle and fixing system pressing down , releasing and retreat , welding torch’s action all are driven by
air cylinders , furthermore welding torch has been equipped with precision micro-adjustment mechanism to get
the best welding position;
4.Control system adopts PLC or Relay integrated control, reliable and simple interface , easily modify and
maintenance;
5. Apply to cooperate welding with TIG, MIG, MAG, SAW and Plasma-Arc welding source.
6. Mainly used for the high quality circular welding of round shape ,oval shape or special shape made with
stainless steel, iron, aluminum and brass, etc;
主要技術參數 Main Technical Parameters
額定輸入電源 Input power supply | Single Phase 220V, 50/60Hz |
電機功率 Motor power | 100W-1500W |
氣源壓力 Gas source pressure | 0.4-0.6Mpa |
最大焊接工件直徑 Max welding diameter | 定做(Customized) |
焊接速度 Welding Speed | 300-1500mm/min |

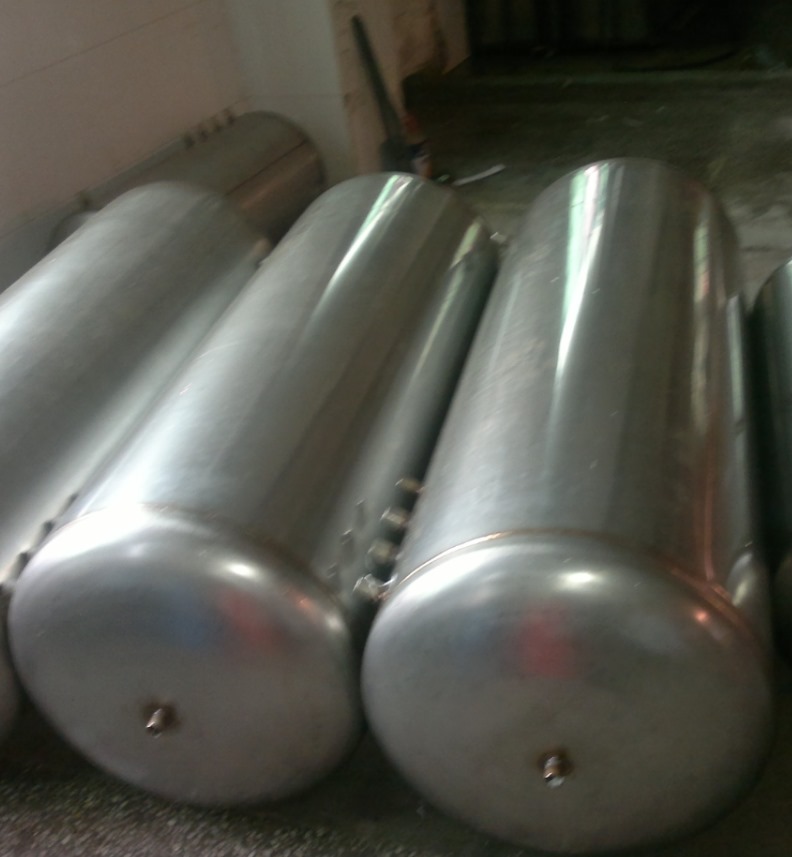

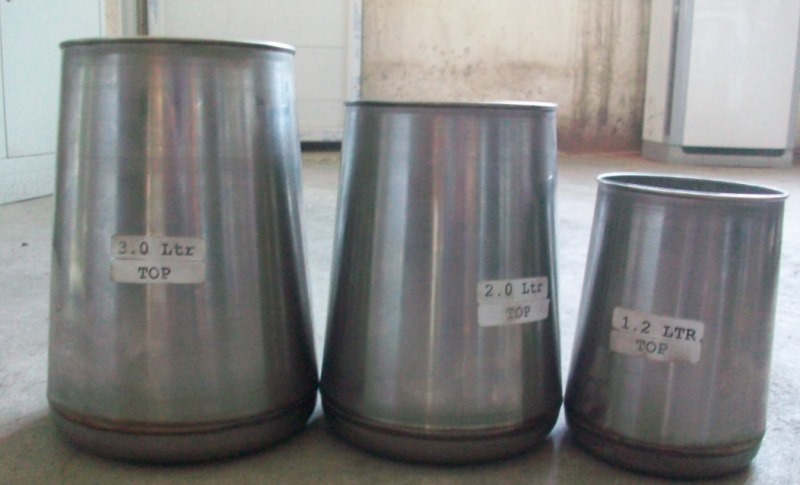

焊接樣品:
