TFN系列氣動交流滾焊機
TFN Series Pneumatic AC Rolling Seam Welding Machine
特點和用途:
1. 包含兩種基本的機型:橫縫焊接和縱縫焊接。
2. 一臺機器可以同時具備橫縫焊接和縱縫焊接兩種功能,只要將轉換一下上電極輪的方向和更換
一下下電極臂,就可以在幾分鐘內完成兩種焊接方式的切換。
3. 單輪采用進口變頻器無級調速驅動,焊接速度調整方便,保證上下兩輪切線速度一致。
4. 采用可調行程氣缸加壓,避免上下電極碰撞損傷。
5. 電源可選擇中頻逆變直流或普通交流。
6. 廣泛用于箱體:如汽車、摩托車油箱;桶體:如鋼桶、油桶以及成形板材工件:如輪圈\消聲\暖氣片等的縫焊.
Main Principle:
1. There is two standard models: Transversal Seam Welding Model and Longitudinal Seam Welding Model.
2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.
3. Driven one head and free the other head. The two seam wheels have the same tangential speed.
4. Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel.
5. There are two types of Welding Power Source:Medium Frequency inverter DC or AC
6. Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
主要技術參數 Main Technical Parameters:
項目 Item 型號 Model | 額定 容量 Rated Capacity | 額定初 級電壓 Rated Primary Voltage | 額定 頻率 Rated Frequency | 最大短 路電流Maximum Short Current | 電極 行程Electrode Stroke | 焊接 速度Welding Speed | 電極 壓力Electrode Pressure | 電動機 電源Motor Power Source | 電動機 功率Motor Power | 冷卻 水流量Cooling Water Flow | 重量Weight |
KVA | V | Hz | A | mm | M/min | KN | V | W | L/min | Kg | |
TFN-50 | 50 | 380 | 50/60 | 15000 | 50 | 0.6-2 | 2.5 | 3-380V | 90 | 30 | 500 |
TFN-75 | 75 | 380 | 50/60 | 18000 | 50 | 0.6-2 | 3.9 | 3-380V | 90 | 30 | 650 |
TFN-100 | 100 | 380 | 50/60 | 20000 | 50 | 0.6-2 | 4.7 | 3-380V | 150 | 30 | 880 |
TFN-150 | 150 | 380 | 50/60 | 26000 | 50 | 0.6-2 | 6.1 | 3-380V | 150 | 40 | 1050 |
TFN-200 | 200 | 380 | 50/60 | 31000 | 50 | 0.6-2 | 6.1 | 3-380V | 150 | 40 | 1250 |

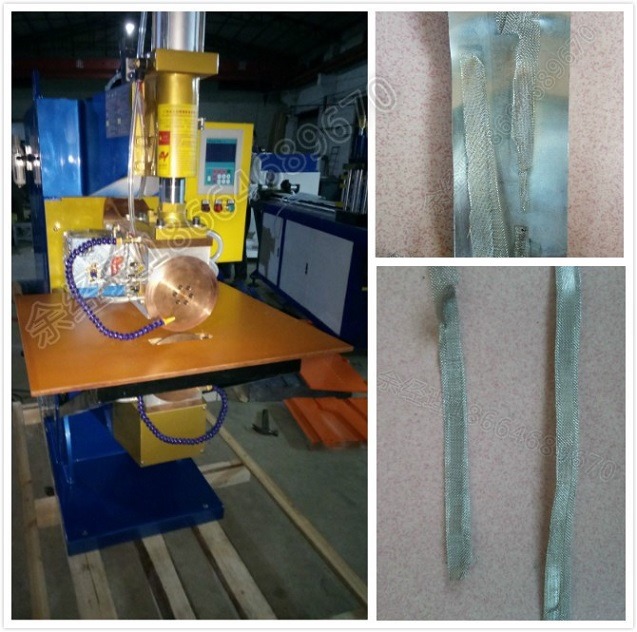

焊接樣品:
